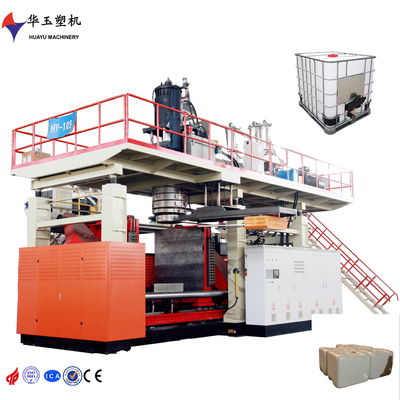

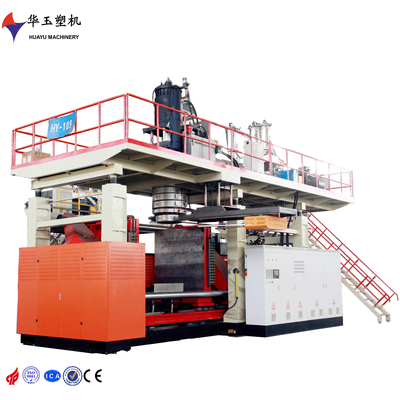

5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
| Plaats van herkomst | CHINA |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM5000-8 |
| Min. bestelaantal | 1 set |
| Prijs | 600000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | L/c, t/t |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Kleur | Aangepast | Uitrekkende Slag | volgens de producten |
|---|---|---|---|
| Schimmel beroerte | 1000 mm | Toepassingsveld | Vloeibare Verpakking |
| Voorwaarde | Nieuw | Bereik | Waterreservoir |
| Lagen | 4 lagen | Platengrootte | 1800*2100 mm |
| Klemkracht | 800kn | Typ van blazen | Extrusieblaasgietwerk |
| klemcylinder | 320+160*2 | Parisoncontrole | MOOG 200punten |
| Hoppermateriaal | Roestvrij staal | Gemiddeld stroomverbruik | 300 kW |
| Capaciteitsbereik | 500--5000L, 8 Layers | ||
| Markeren | 5000L water tank blow molding machine,8-layer energy-saving blow molding machine,large water tank machine with cooling system |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving
This energy-saving blow molding machine with a 5000L capacity and 8-layer co-extrusion is designed to optimize energy usage. The water tank system ensures rapid and effective cooling, reducing energy consumption and operational costs. The machine's advanced control system provides precise control over the molding process, ensuring high-quality products. Its durable construction and reliable performance make it suitable for large-scale production environments. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Clamping System |
||
|
platen size |
2400*2500*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2200mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1600-4000mm |
|
|
寸max. mould size |
1800*2500mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
