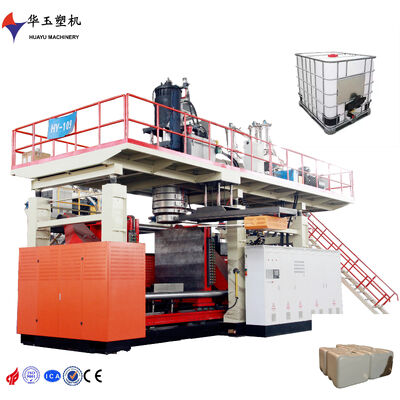

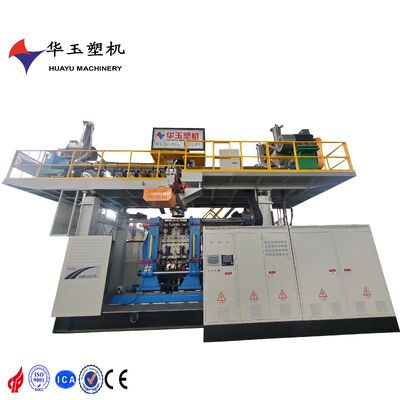

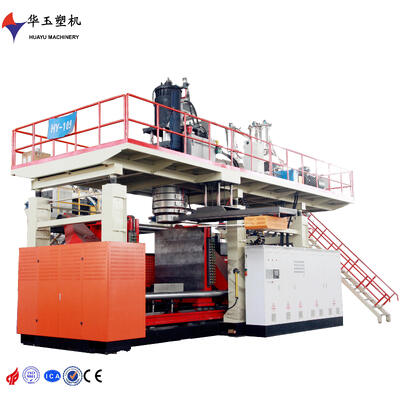

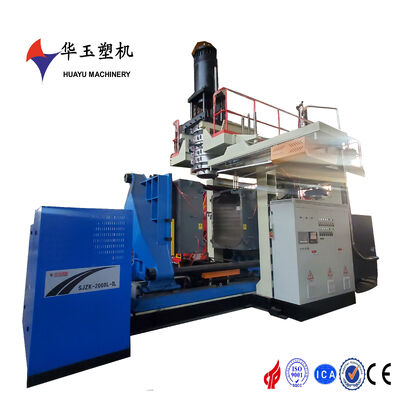

3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
| Plaats van herkomst | CHINA |
|---|---|
| Merknaam | HUAYU |
| Certificering | IISO9001 CE |
| Modelnummer | HYBM3000-8 |
| Min. bestelaantal | 1 set |
| Prijs | 440000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 Monrhs |
| Betalingscondities | T/t, l/c |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Sollicitatie | Productie van watertanks | Materiaal | HDPE |
|---|---|---|---|
| Plaat afstand | 2300 tot en met 5500 mm | Clamping cilinder slag | 2000 mm |
| Maximaal volume | 10-25L | Machinegrootte | 2.8x1.65x2.3m |
| Schroef verwarmingsvermogen | 4.4kw*15 | Dimensie | 5000x3000x4000mm |
| Automatiseringsniveau | Volledig automatisch | Garantie | 1 jaar |
| Schimmelholte | Enkele/multi | Temperatuurregeling | PLC -module |
| Hol deelvolume | 500-2000L | Maat | aangepast |
| Extrudertype | Enkele schroef | ||
| Markeren | 3000L water tank blow molding machine,8-layer high-speed blow molding machine,large water tank machine with rapid cooling |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving
This high-speed blow molding machine with a 3000L capacity and 8-layer co-extrusion is designed for rapid production. The water tank system ensures quick and efficient cooling, allowing for faster cycle times and increased productivity. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its robust design and high-speed capabilities make it ideal for manufacturers looking to boost production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1700L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump 200CC |
|
|
main oil pump motor |
75kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
11kw |
|
