5000L 5-Layer Large Heavy-Duty Water Tank Blow Molding Machine with Heavy-Duty
| Plaats van herkomst | CHINA |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM5000-5 |
| Min. bestelaantal | 1 set |
| Prijs | 500000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | L/c, t/t |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Voedingsmotor | 1.5kw*4 | Koelmethode | Circulerend water |
|---|---|---|---|
| Automatiseringsniveau | Volledig automatisch | Capaciteitsbereik | 2000l |
| After Sales | Overzeese service | Machinetype | watertank blaasgietmachine |
| klemcylinder | 350+200*2 | Automatisch | Ja |
| Maximaal volume | 5 L | Maat | aangepast |
| Verwarming van het hoofd | 60 kW | PLC -merk | Siemens |
| Materiële bron | HDPE, PP, PVC, HIPS, ABS | Versnellingsbak | Guigo |
| Controleur | PLC+touchscreen | ||
| Markeren | 5000L water tank blow molding machine,5-layer heavy-duty blow molding machine,large water tank molding machine with warranty |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving

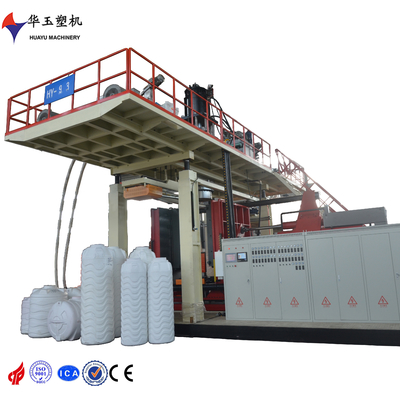

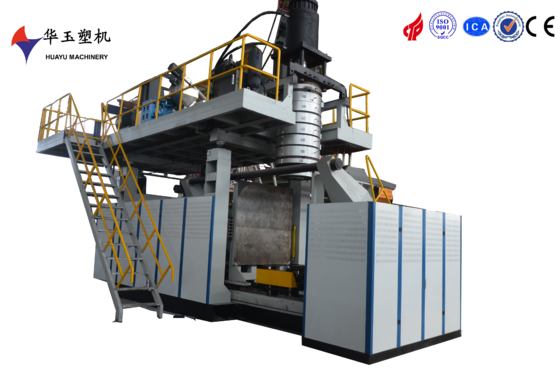

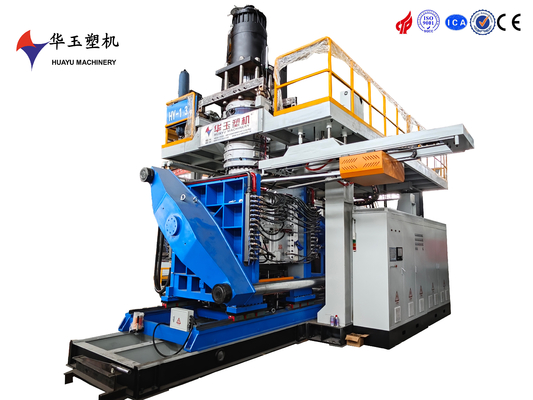

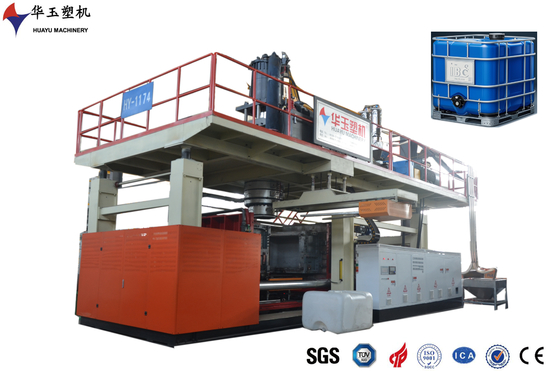

This heavy-duty blow molding machine with a 5000L capacity and 5-layer co-extrusion is designed for large-scale production of heavy-duty plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's robust construction and advanced control system offer precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, heavy-duty plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
110kw |
|
|
Clamping System |
||
|
platen size |
2200*2400*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
200+300*2 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
distance between platens |
1100-3200mm |
|
|
max. mould size |
1700*2200mm(W*H) |
|
