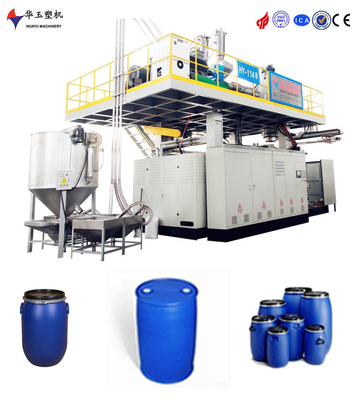

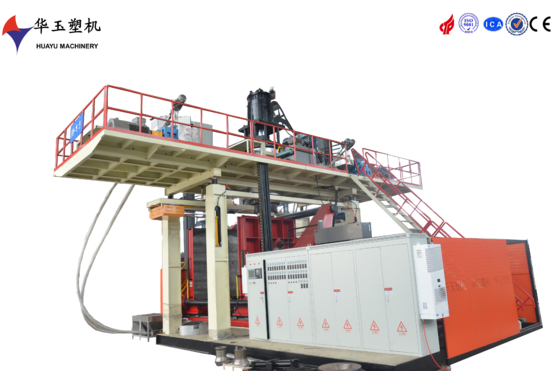

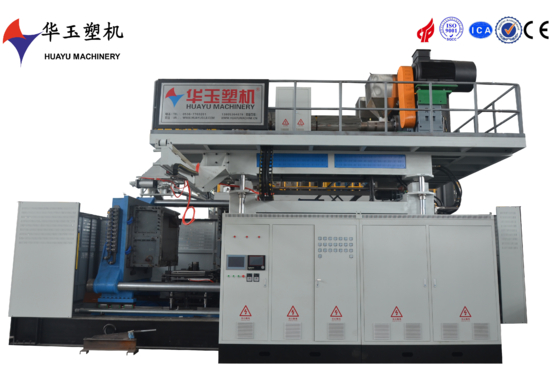

3000L 1-Layer Large Basic Water Tank Blow Molding Machine for Basic Production
| Plaats van herkomst | CHINA |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM3000-1 |
| Min. bestelaantal | 1 set |
| Prijs | 260000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | T/t, l/c |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Schroefmateriaal | 38CrMoAlA,nitrideren | Automatiseringsniveau | Volledig automatisch |
|---|---|---|---|
| Plastificerend vermogen | 400kg/h | Emmerdikte | niet erg dik |
| Toepasselijk materiaal | HDPE | Waterdruk | 0,3 mpa |
| Luchtvoorziening | 0.8*6 ((Mpa* kubieke meter per minuut) | Productiesnelheid | 100-200 stuks/uur |
| klemcylinder | 320+160*2 | After Sales | Overzeese service |
| Machineschade | 8.5*6*7.2 | Productbereik | Plastic fles Jerrycan |
| Hol deelvolume | 500-2000L | Capaciteit | 1000-5000 liter |
| Machinegrootte | 5.0x2.3x3.6m | ||
| Markeren | 3000L water tank blow molding machine,1-layer water tank production machine,large basic water tank molding equipment |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving
This basic blow molding machine with a 3000L capacity and 1-layer co-extrusion is designed for fundamental production needs. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's straightforward design and reliable performance make it suitable for small to medium-scale production environments. Its advanced control system offers precise control over the molding process, ensuring consistent product quality. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1500L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump185CC |
|
|
main oil pump motor |
70kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
7.5kw |
|
