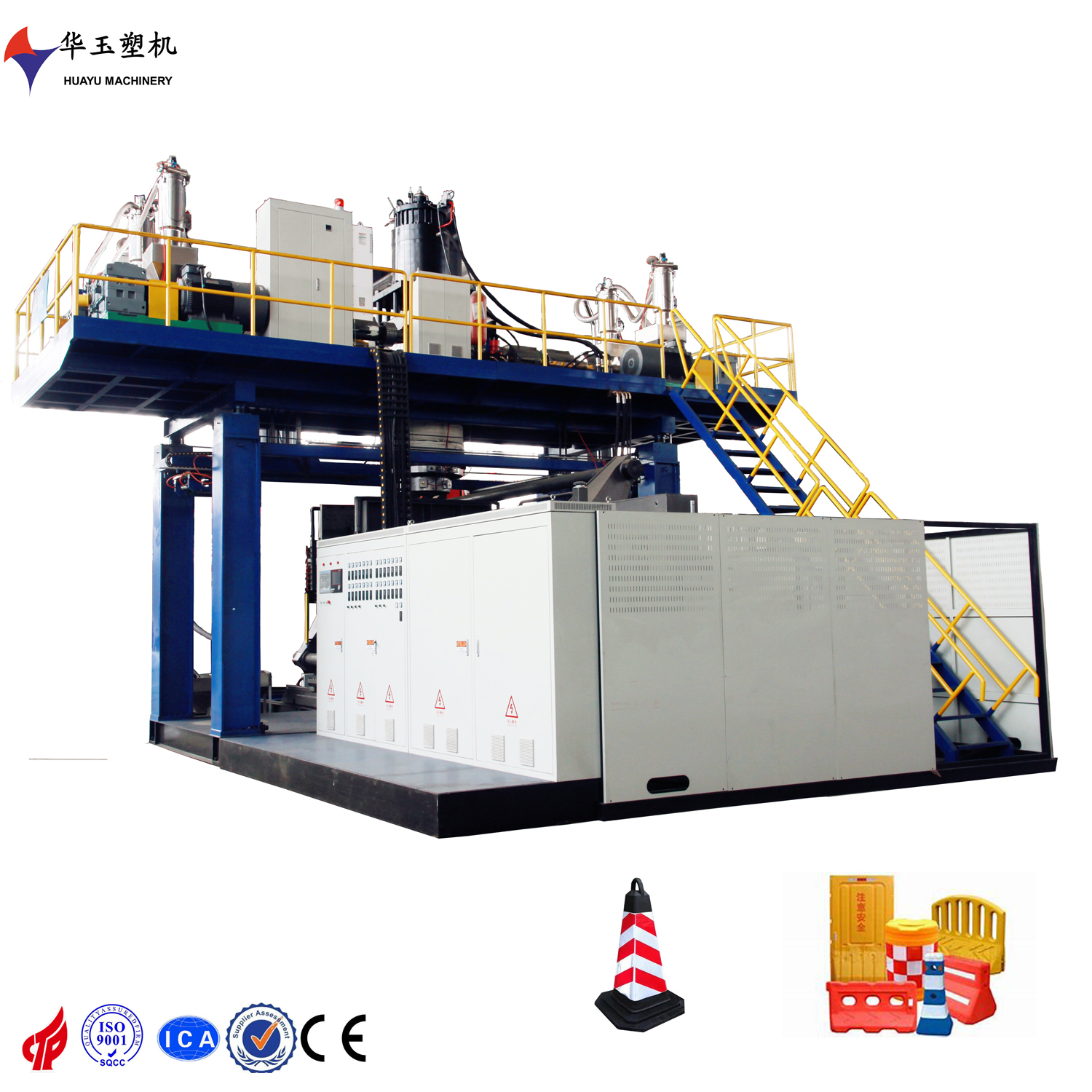

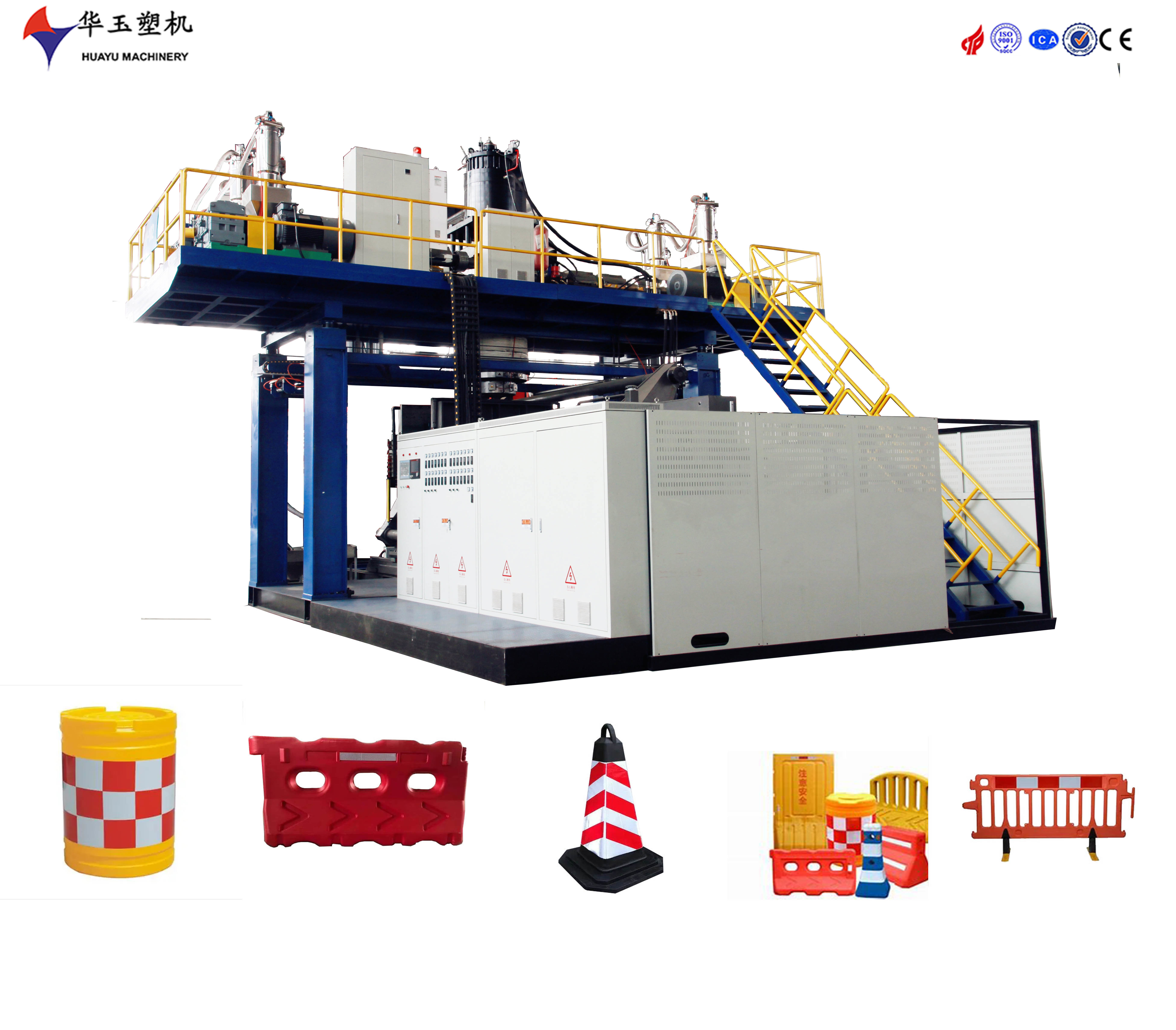

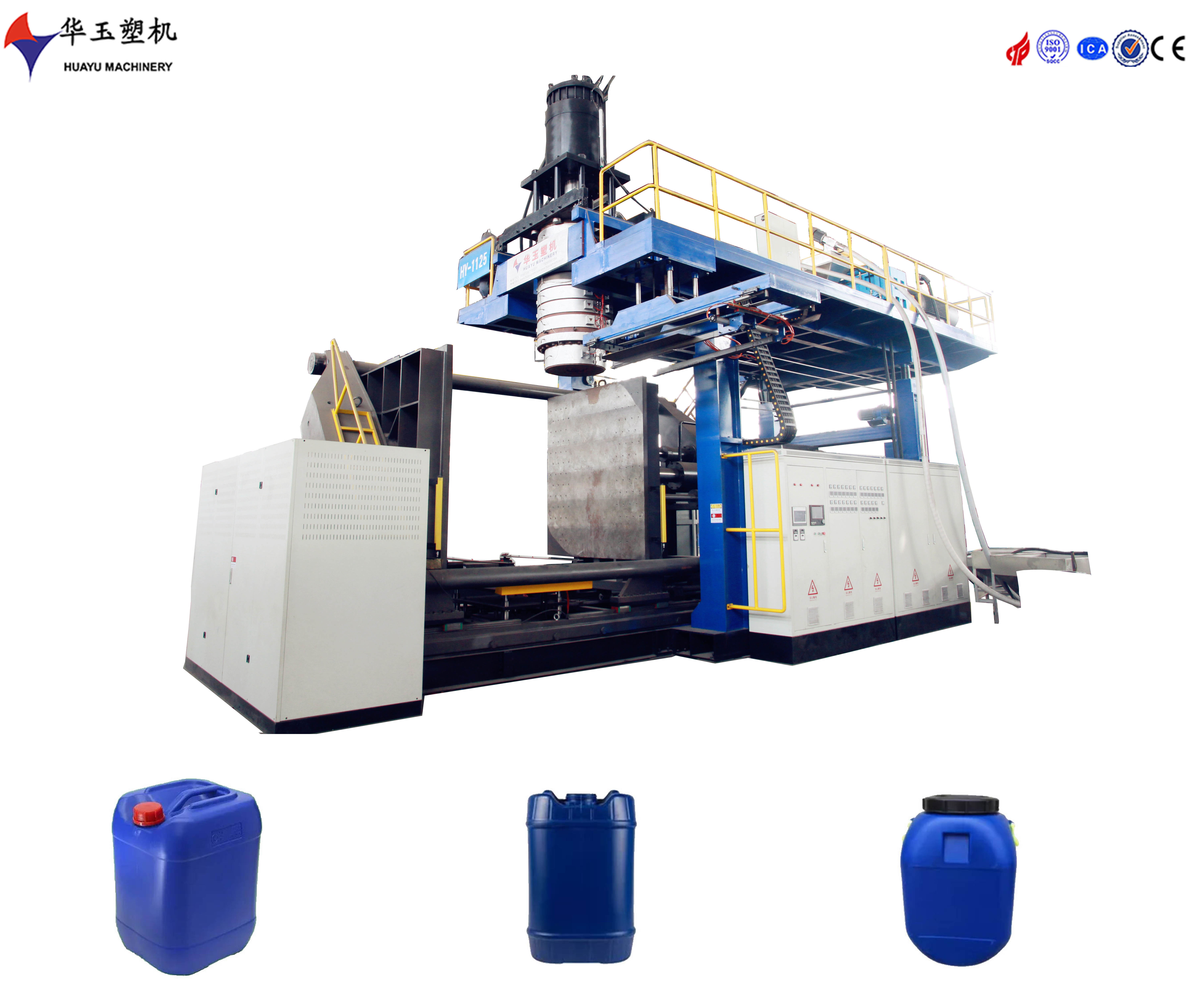

2000L 3-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Plaats van herkomst CHINA
Merknaam HUAYU
Certificering ISO9001 CE
Modelnummer HYBM2000-3
Min. bestelaantal 1 set
Prijs 220000 USD
Verpakking Details worden in vele delen gedemonteerd voor containervervoer
Levertijd 4 maanden
Betalingscondities T/t, l/c
Levering vermogen 1 set 120 dagen

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u zich zorgen maakt, bieden we 24-uurs online hulp.

x
Productdetails
Luchtdruk 0,8 mpa Uitvoer 450Kg/u
Servomotor 57KW Verwarmingskracht 60 kW
Type Blowmoulding machine Automatiseringsniveau Volledig automatisch
Koelsysteem Waterkoeling Capaciteit 500-1000 liter
Belangrijke verkooppunten Lange levensduur, gemakkelijk te bedienen Automatisering Automatisch
Productbereik Plastic fles Jerrycan Jaar 2024
Laag 3 lagen gewicht van het strijkkopje 26T
Plastic verwerkt PE, HDPE
Markeren

2000L water tank blow molding machine

,

heavy-duty water tank molding machine

,

3-layer water tank blow molder

U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Laat een bericht achter
Productomschrijving

This 2000L three-layer heavy-duty blow molding machine is designed for producing high-performance multi-layer plastic products. The triple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties and improved product durability. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

 die head

Accumulator capacity

60kg

designed  by ourselves and get the patent

Die diameter

According to products



Die head heating power

60kw



 Clamping  System

platen size

1900*2000*60mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+280*2



clamping cylinder stroke

2000mm



clamping force

1800KN



distance between platens

1000-3000mm



Max. mould size

1600*2000mm(W*H)
