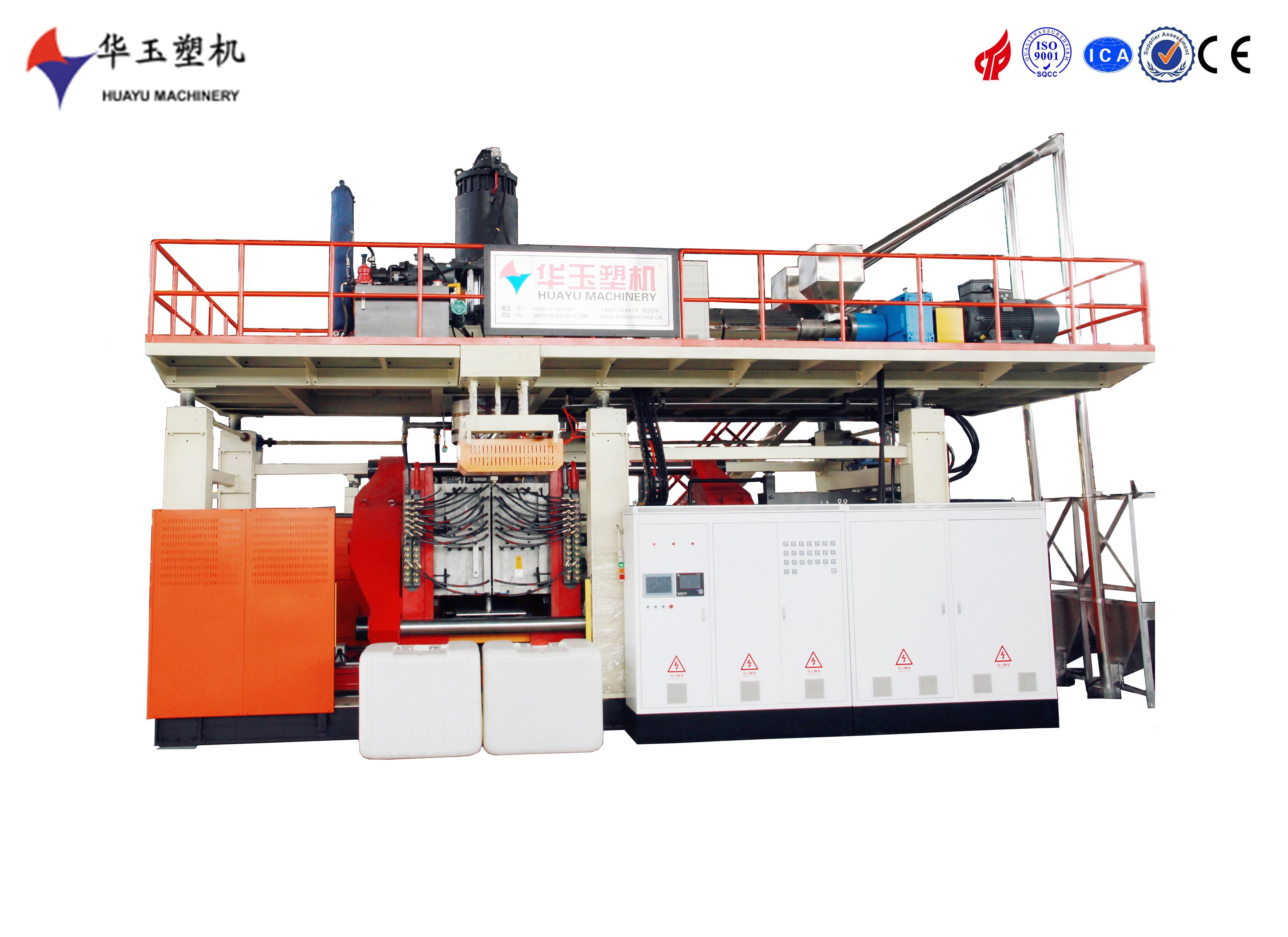

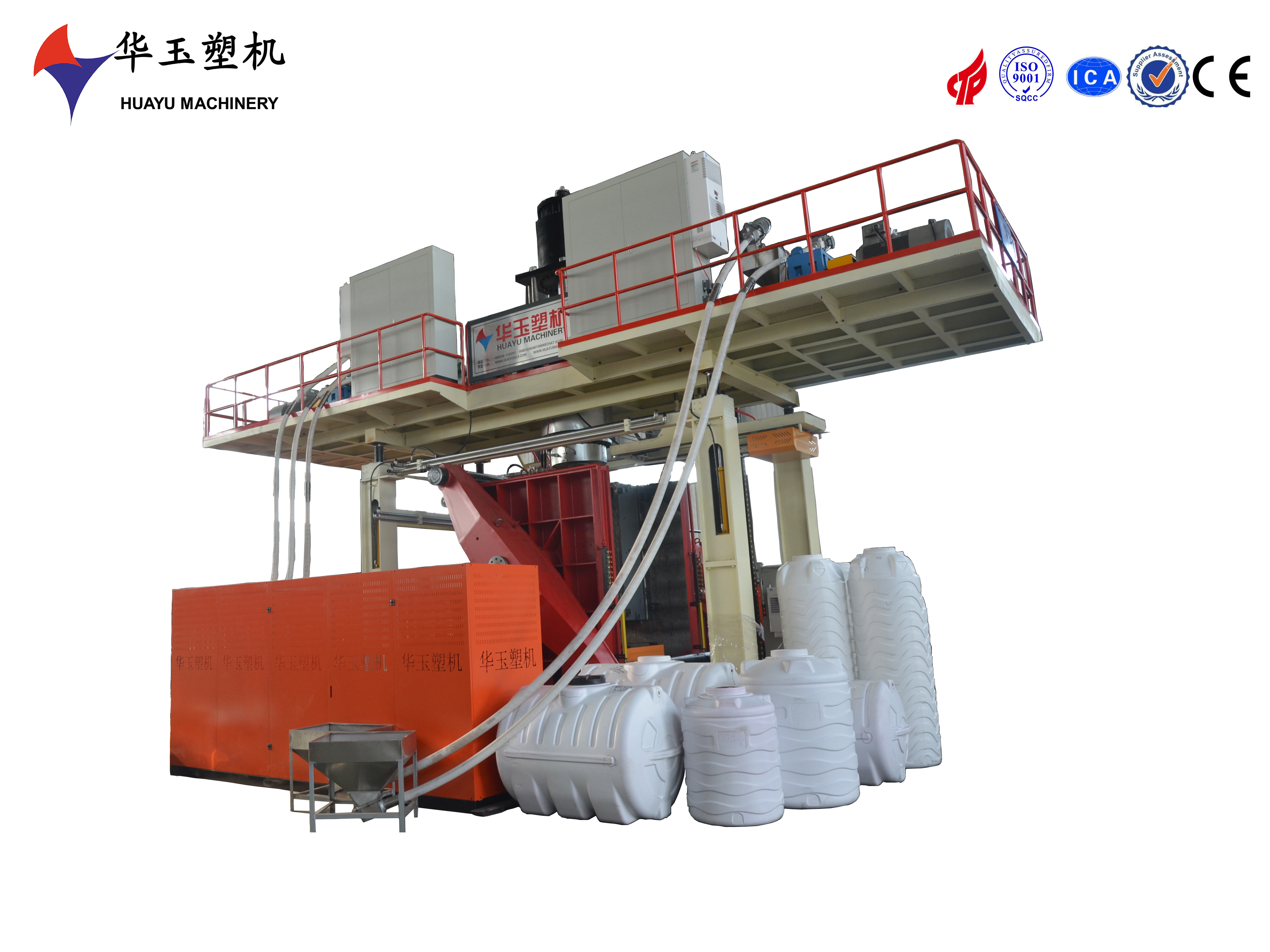

2000L 5-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Plaats van herkomst CHINA
Merknaam HUAYU
Certificering ISO9001 ISO
Modelnummer HYBM2000-5
Min. bestelaantal 1 set
Prijs 260000 USD
Verpakking Details worden in vele delen gedemonteerd voor containervervoer
Levertijd 4 maanden
Betalingscondities T/t, l/c
Levering vermogen 1 set 120 dagen

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u zich zorgen maakt, bieden we 24-uurs online hulp.

x
Productdetails
Product waterreservoir,andere kunststofproducten Belangrijke verkooppunten Hot sellers
Spanningsbereik 220V/380V/415V/440V Toepassingsveld Vloeibare Verpakking
Verkooppunt Hoog rendement Servoklep Moer
Platengrootte 1500*1600*60 mm PLC SIMENS (Duitsland)
Vormmethode Extrusieblaasgietwerk Versnellingsbak Guigo
Sleutelwoorden Servomotor, afstandsbediening Stroom 62 kw
Motor 5.5 Extrudertype Enkele schroef
Productiviteit 16-25 stuks per uur
Markeren

2000L water tank blow molding machine

,

5-layer heavy-duty water tank machine

,

large water tank molding machine with warranty

U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Laat een bericht achter
Productomschrijving

This 2000L five-layer heavy-duty blow molding machine is designed for producing ultra-high-performance multi-layer plastic products. The quintuple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, and excellent thermal stability. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



maximum air pressure

0.8Mpa



air consumption

2.3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

60m3/h



 Hydraulic system

ain oil tank capacity

1200L

Servo motor, less energy consumption, high efficiency, low noise

n oil pump

gear pump160CC

main oil pump motor

45kw

 oil tank capacity

200L



 oil pump model

Plunger pump22



Servo oil pump motor

7.5kw
