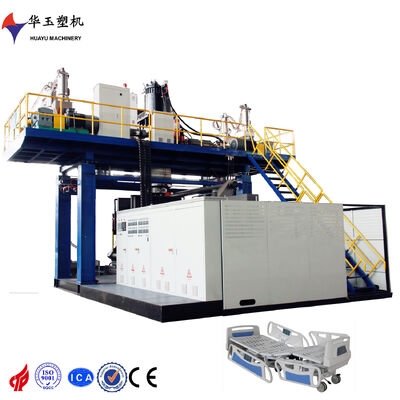

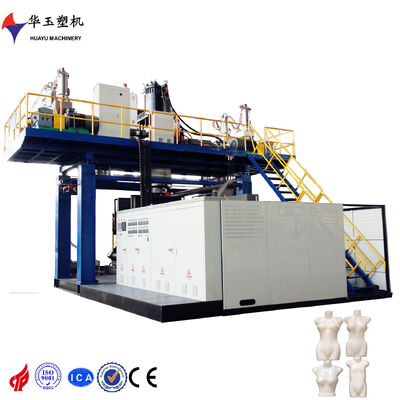

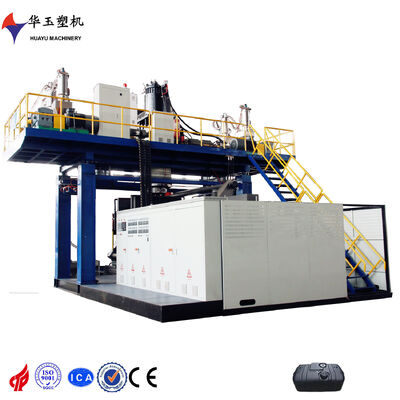

HUAYU 3000L Ten-Layer Large Capacity Water Tank Blow Molding Machine with Superior Impact Resistance
| Plaats van herkomst | China |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM30010 |
| Min. bestelaantal | 1 set |
| Prijs | 440 000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | T/T,L/C |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Emmerdikte | niet erg dik | Showroom Locatie | Geen |
|---|---|---|---|
| Luchtverbruik | 1.0 m3/min | Gemiddelde | 40 kW |
| Uitrekkende Slag | volgens de producten | Extrudermotor | 90 kW |
| PLC | SIMENS (Duitsland) | Recycleerbaarheid | Recyclebaar |
| Gemiddelde veronderstelling | 280 kW | Verkooppunt | Hoog rendement |
| Blaasvormtype | Het Afgietsel van de injectieslag | Materiaal | HDPE |
| Machineschade | 8.5*6*7.2 | Gemiddelde Consumptie | 180 kW |
| Controlesysteem | PLC-besturing | ||
| Markeren | HUAYU 3000L water tank blow molding machine,large capacity blow molding machine with impact resistance,ten-layer water tank blow moulding machine |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving
This 3000L ten-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The ten-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, superior chemical resistance, advanced UV protection, superior oxygen barrier, advanced moisture barrier, and superior impact resistance. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
110kw |
|
|
Clamping System |
||
|
platen size |
2100*2200*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
160*2 320*1 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
istance between platens |
1100-3200mm |
|
|
max. mould size |
1800*2200mm(W*H) |
|
