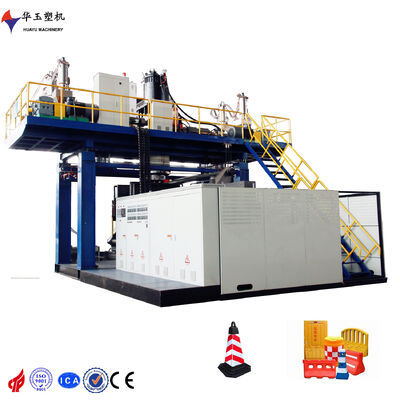

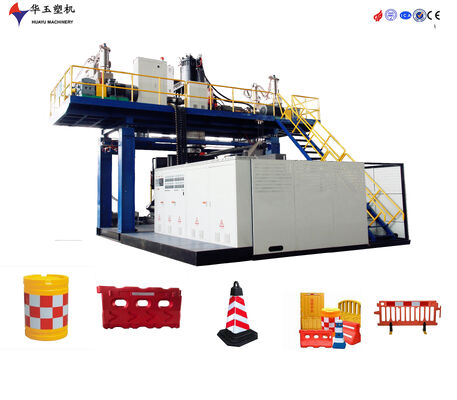

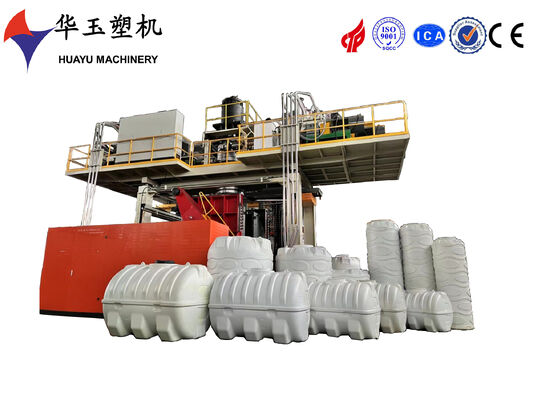

5000L Triple-Layer Large Capacity Water Tank Blow Molding Machine with Superior Corrosion Resistance
| Plaats van herkomst | China |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM5003 |
| Min. bestelaantal | 1 set |
| Prijs | 420,000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | T/T,L/C |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Schroefdiameter | 100 mm*6 | Machinetype | blaasgietmachine |
|---|---|---|---|
| Parison | MOOG 200punten | Jaar | 2024 |
| Maximale luchtdruk | 0,8 MPa | Automatisch | Ja |
| Sleutelwoorden | Servomotor, afstandsbediening | Blaasvormtype | Extrusieblaasgietwerk |
| Typ van blazen | Extrusieblaasgietwerk | Platengrootte | 2200*2400*70mm ((W*H*T) |
| Bereik | 500-2000L | Aanraakscherm | Siemens |
| Het voedingstype | vacuümbeladen | Toepasselijke industrieën | Ander |
| Voedingsmotor | 1.5kw*4 | ||
| Markeren | 5000L water tank blow molding machine,triple-layer water tank machine,large capacity corrosion-resistant water tank machine |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving
This 5000L triple-layer blow molding machine is designed for producing high-performance multi-layer water tanks. The triple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties and improved product durability. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Extrusion System |
||
|
Screw diameter |
150/150mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
30:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
160/160kw |
|
|
Reducer |
420/420 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
6kw*14 |
|
|
Plasticizing capacity |
1000kg/h |
|
|
die head |
||
|
Accumulator capacity |
150kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
100kw |
|
