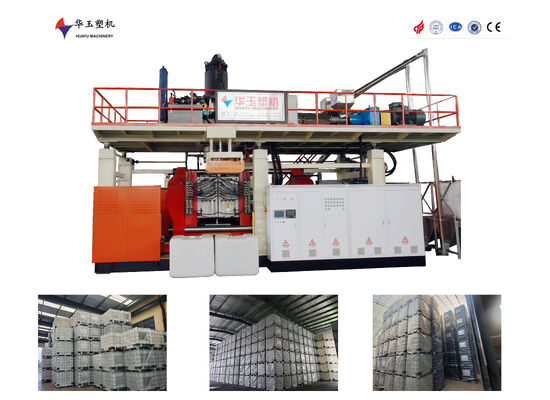

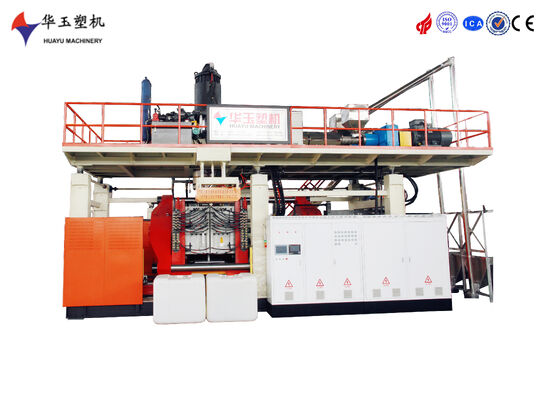

5000L Quintuple-Layer Large Capacity Water Tank Blow Molding Machine with Enhanced Mechanical Strength
| Plaats van herkomst | China |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM5005 |
| Min. bestelaantal | 1 set |
| Prijs | 500,000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | T/T,L/C |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Totaal gewicht | 38T | Servomotor | 30 kW |
|---|---|---|---|
| Gebruik | Waterreservoir | Maximale tankcapaciteit | 5000 liter |
| Schroefdiameter | 120 mm | Clamping cilinder slag | 2000 mm |
| Accumulatorcapaciteit | 35 kg | Producttype | blaasgietmachine |
| Schimmelmateriaal | Aluminium | Stroombron | Elektrisch |
| Extruderdiameter | 90-150 mm | Schimmelholte | Enkel |
| Waterdruk | 0,3 mpa | Voeding | 380V/50Hz |
| Hoopmateriaal | Roestvrij staal | ||
| Markeren | 5000L water tank blow molding machine,quintuple-layer water tank machine,large capacity blow molding machine |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving
This 5000L quintuple-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The quintuple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, and excellent thermal stability. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Clamping System |
||
|
platen size |
2400*2500*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2500mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1500-4000mm |
|
|
max. mould size |
2200*2500mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
5m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
2m3/h |
|
