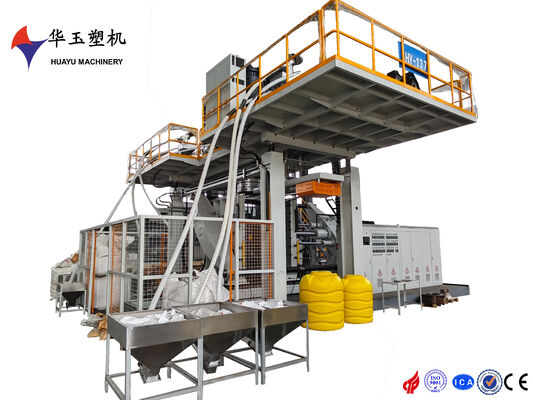

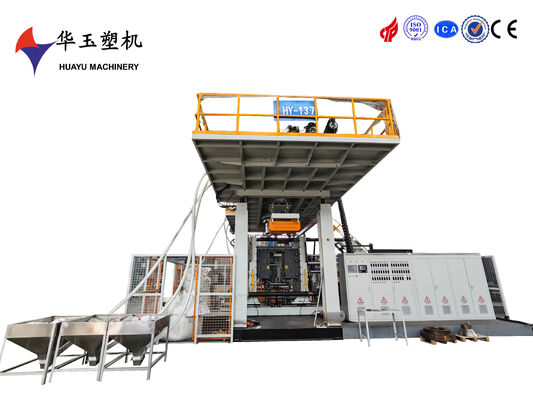

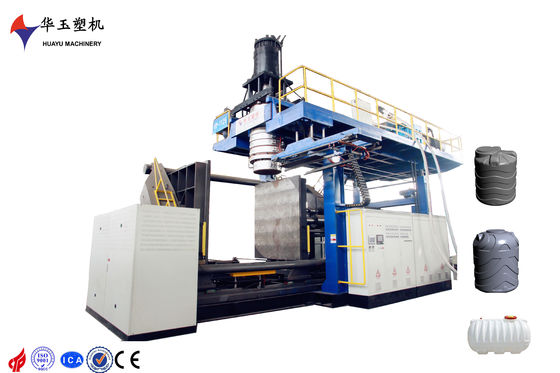

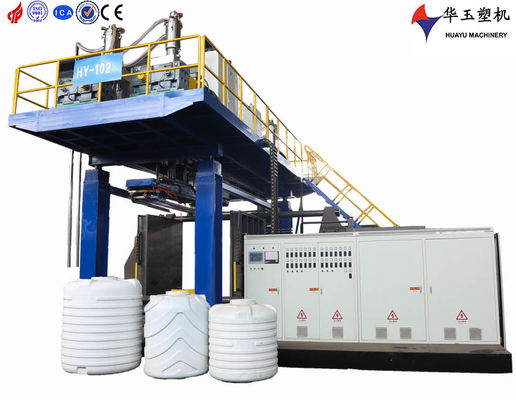

2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production

  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
Plaats van herkomst China
Merknaam HUAYU
Certificering ISO9001 CE
Modelnummer HYBM-8.2200L -6 lagen
Min. bestelaantal 1 set
Prijs 280000 USD
Verpakking Details worden in vele delen gedemonteerd voor containervervoer
Levertijd 4 maanden
Betalingscondities L/C, T/T
Levering vermogen 1 set 120 dagen

Neem contact met me op voor gratis monsters en coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u zich zorgen maakt, bieden we 24-uurs online hulp.

x
Productdetails
Spanning hangend Totaal vermogen 550 kW
Gemiddelde kracht 320 kW Afmetingen van de machine (L*W*H) 8,5*9,5*7
Productiviteit 10-24 stuks per uur Schroefdiameter 90 mm
Schroef L/D-verhouding 28 Accumulatorcapaciteit 60 kg
Maximale vormgrootte 1600*2000mm ((W*H) Maximale luchtdruk 0,8 MPa
Luchtverbruik 2.3m3/min
Markeren

6-layer structure Water Bucket Blow Molding System

,

2200L capacity Water Tank Blow Moulding Machine

,

High-speed continuous production Blow Molding Machine
Laat een bericht achter
Productomschrijving
Efficiency Redefined: 6-Layer 2200L Water Bucket Blow Molding System
Key Advantages
  • 6-layer structure for superior durability and impact resistance
  • Strong barrier performance against moisture and contaminants
  • High-speed continuous production for large-scale orders
  • Layered material allocation reduces production costs
  • Flexible customization for 2200L bucket specifications
Hydraulic System Specifications
Main Oil Tank Capacity 1200L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 160CC
Main Oil Pump Motor 55kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic Control System
Main Operation Panel Touch Screen 9"
Control System PLC
Thickness Control Points 100 Points
Temperature Control PLC Module
