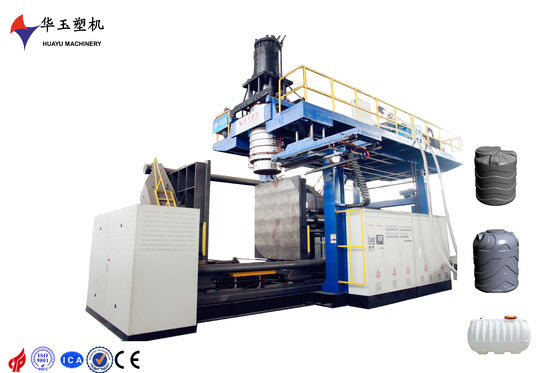

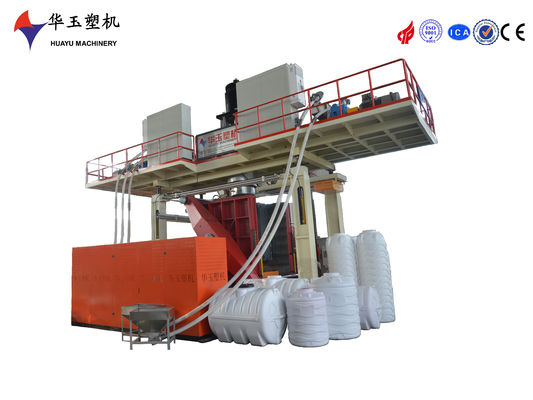

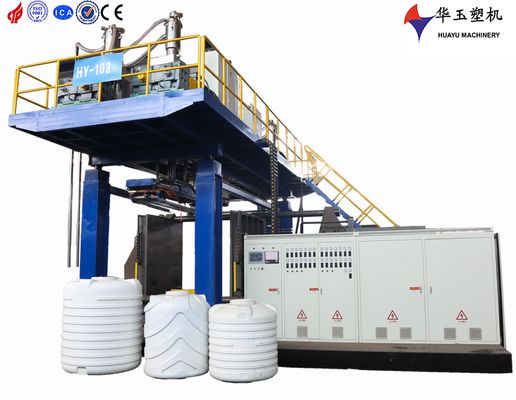

10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
| Plaats van herkomst | China |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM-2000L -10 lagen |
| Min. bestelaantal | 1 set |
| Prijs | 340000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | T/T,L/C |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Spanning | hangend | Totaal vermogen | 570 kW |
|---|---|---|---|
| Gemiddelde kracht | 320 kW | Afmetingen van de machine (L*W*H) | 12,6*11*7,6 |
| Productiviteit | 10-24 stuks per uur | Schroefdiameter | 100*6mm |
| Schroef L/D-verhouding | 28 | Accumulatorcapaciteit | 60 kg |
| Maximale vormgrootte | 1600*2000mm ((W*H) | Maximale luchtdruk | 0,8 MPa |
| Luchtverbruik | 2.3m3/min | ||
| Markeren | 10-Layer Water Tank Blow Moulding Machine,2000L Blow Molding Solution,Intelligent System Blow Moulding Equipment |
||
Productomschrijving
Advanced 10-Layer 2000L Water Container Blow Molding Solution
Key Advantages
- 10-layer structure enhances strength and impact resistance for large 2000L tanks
- Superior barrier effect protects against UV radiation and contaminants to maintain water quality
- Optimized design enables fast, stable high-volume production
- Intelligent system reduces energy consumption and supports recyclable materials for eco-friendly operation
- User-friendly controls and modular components simplify operation and maintenance
Hydraulic System Specifications
| Main Oil Tank Capacity | 1200L |
| Main Oil Pump | Gear Pump 160CC |
| Main Oil Pump Motor | 45kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Servo motor technology provides energy efficiency, high performance, and low noise operation
Electronic Control System
| Main Operation Panel | 12" Touch Screen |
| Control System | PLC (Programmable Logic Controller) |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
