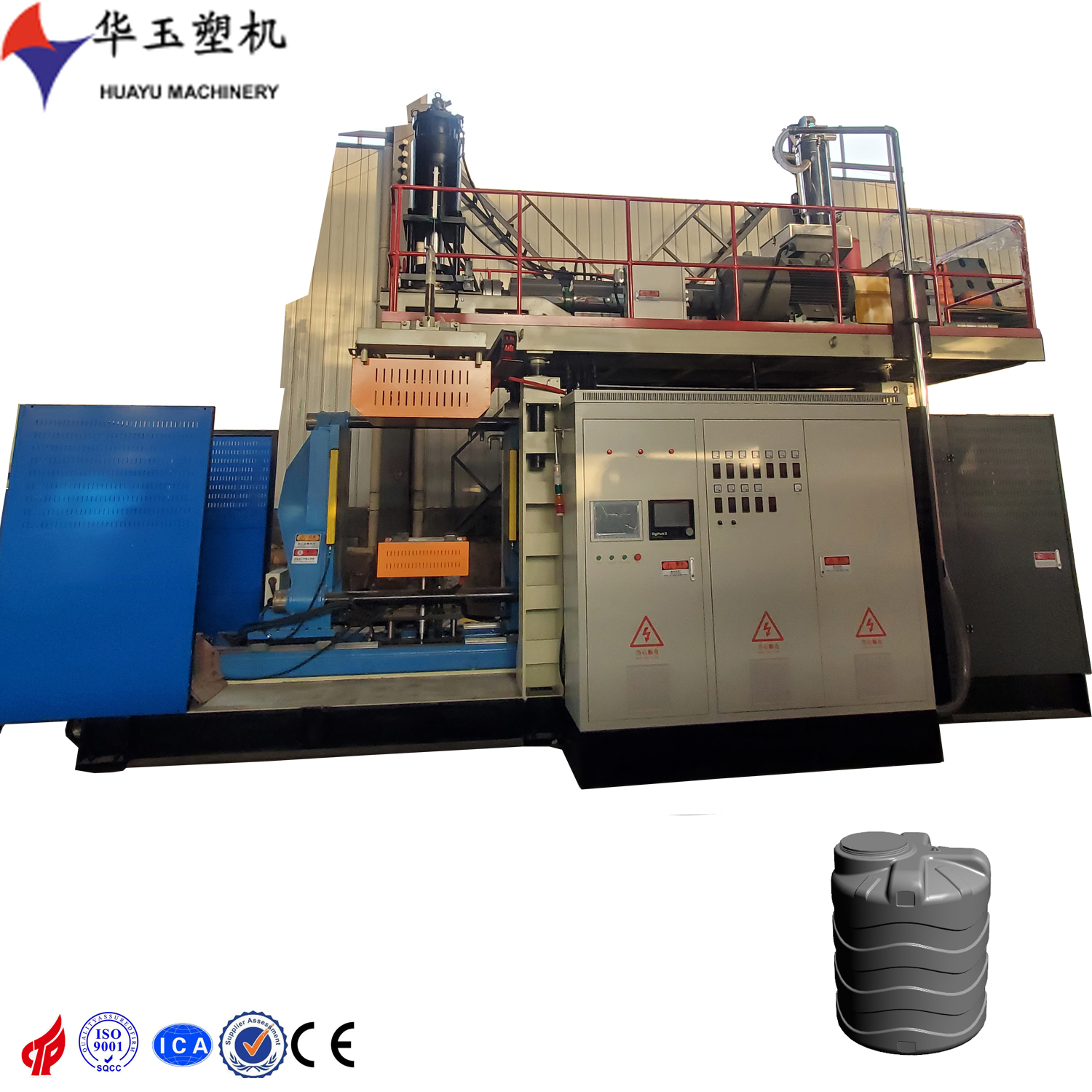

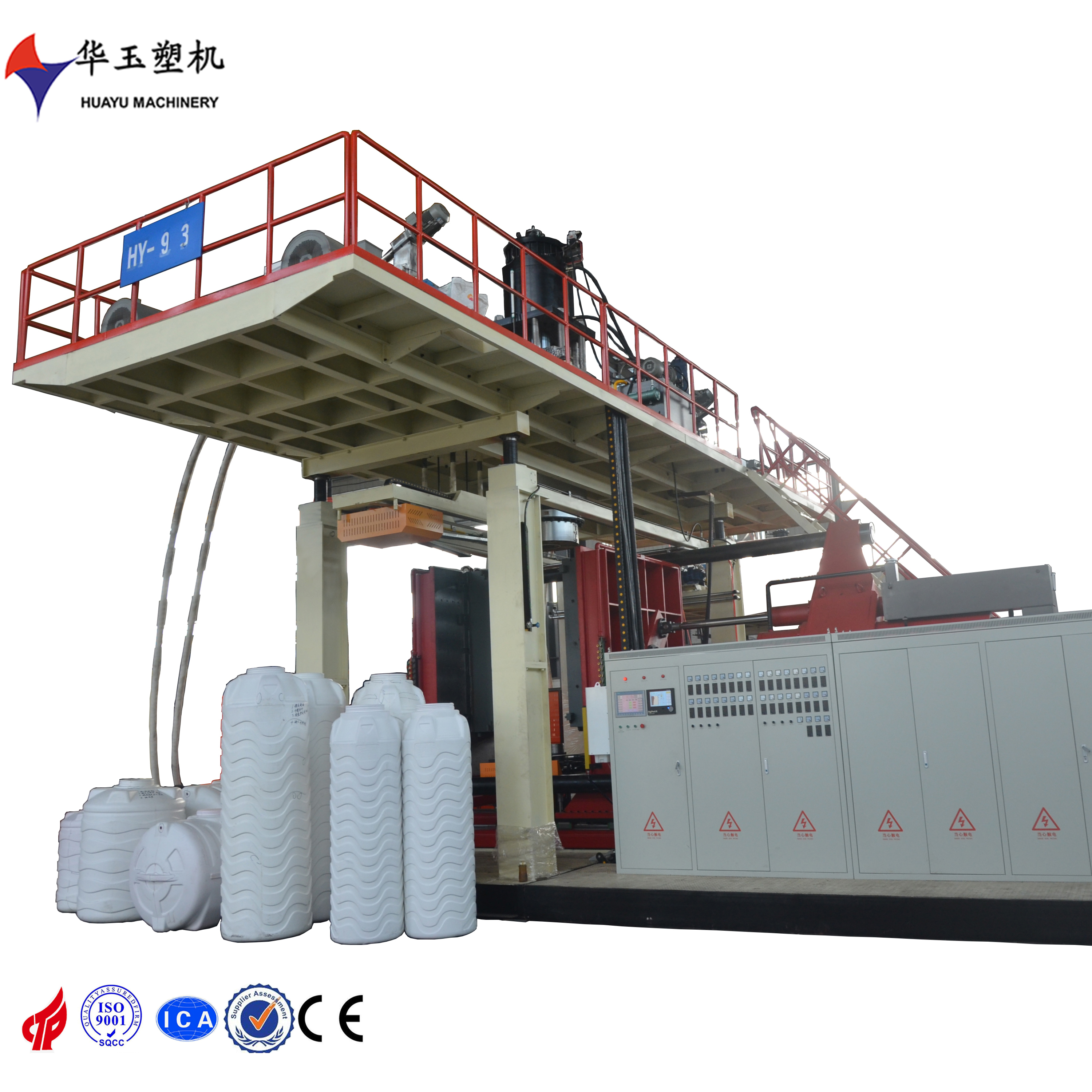

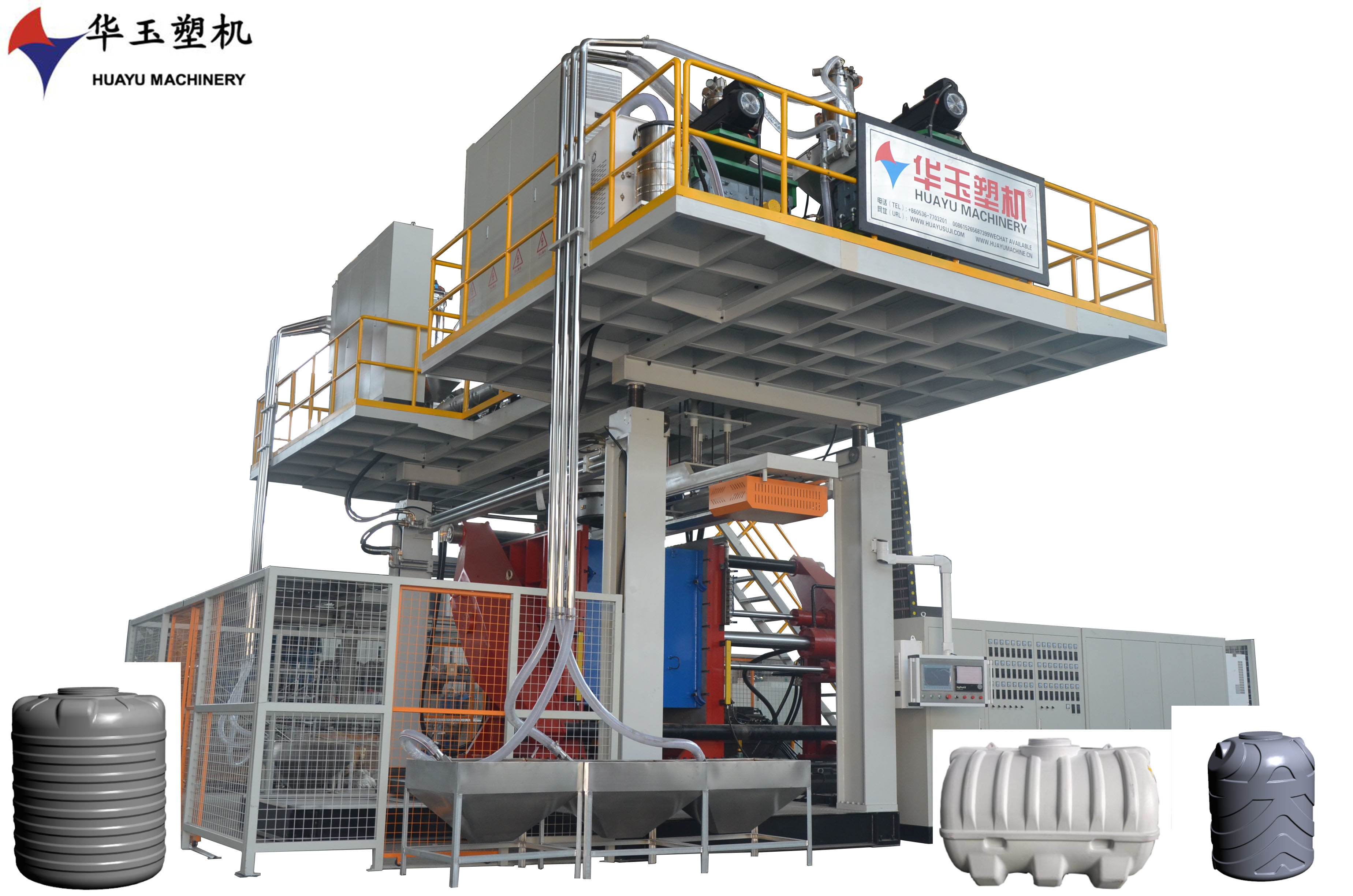

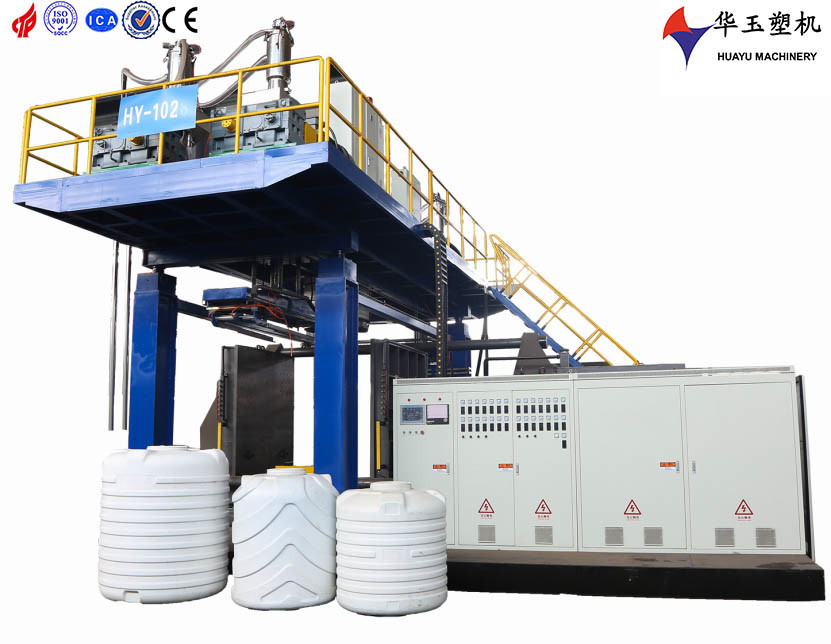

1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
| Plaats van herkomst | China |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM 1000L -7 lagen |
| Min. bestelaantal | 1 set |
| Prijs | 280000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | T/T,L/C |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Spanning | hangend | Totaal vermogen | 585 kW |
|---|---|---|---|
| Gemiddelde kracht | 385 kW | Afmetingen van de machine (L*W*H) | 8 maal 9 maal 6.5 |
| Productiviteit | 16-25 stuks per uur | Schroefdiameter | 90 mm * 7 |
| Schroef L/D-verhouding | 28 ： 1 | Accumulatorcapaciteit | 50KG |
| Maximale vormgrootte | 1400*1500mm (B*H) | Maximale luchtdruk | 0,8 MPa |
| Luchtverbruik | 1.5 m3/min | ||
| Markeren | 7-Layer Structure Water Tank Blow Moulding Machine,1000L Capacity Blow Molding Equipment,High Efficiency Plastic Water Tank Making Machine |
||
Productomschrijving
Top-Tier 1000L 7-Layer Water Container Blow Molding Equipment
Advanced blow molding machine engineered for high-volume production of durable 7-layer water containers with superior performance characteristics.
Key Advantages
- Maximum Strength & Durability: 7-layer structure creates impact-resistant tanks built for long-term performance
- Superior Water Quality: Specialized barrier layer prevents oxygen ingress, reducing algae growth and maintaining water freshness
- Long-Lasting Outdoor Performance: UV-protected outer layer prevents fading, cracking, and degradation from sunlight exposure
- Significant Material Cost Savings: Strategic material placement allows use of premium resins only where needed, with cost-effective or recycled materials in core layers
- High Efficiency & Low Unit Cost: Optimized for fast cycle times and high-volume production, reducing per-unit manufacturing costs
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L |
| Main Oil Pump | Gear Pump 125CC |
| Main Oil Pump Motor | 37kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic Control System
| Main Operation Panel | 12" Touch Screen |
| Control System | PLC |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
