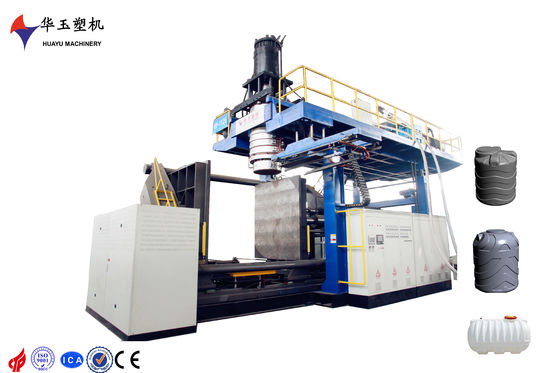

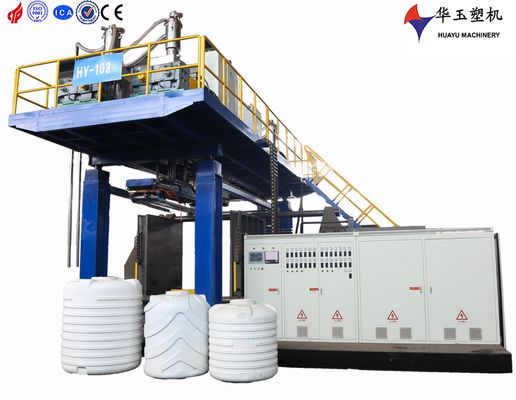

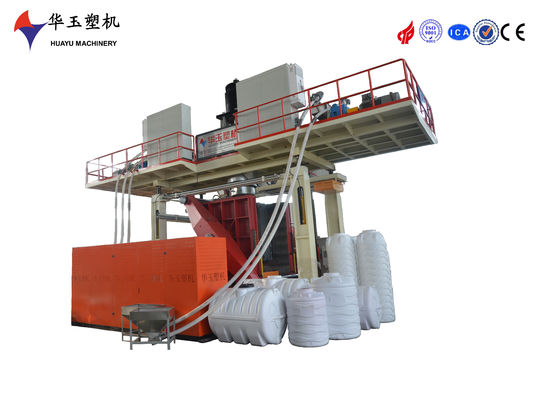

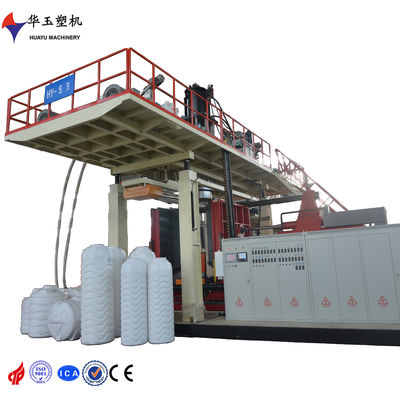

8-Layer 1000L Food-Grade Water Tank Blow Molding Machine for High-Quality Production
| Plaats van herkomst | China |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM-200-1000L, 8 lagen |
| Min. bestelaantal | 1 INSTELLEN |
| Prijs | 280000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | T/T,L/C |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Spanning | hangend | Totaal vermogen | 540KW |
|---|---|---|---|
| Gemiddelde kracht | 320 kW | Afmetingen van de machine (L*W*H) | 8 maal 9 maal 6.5 |
| Productiviteit | 16-25 stuks per uur | Schroefdiameter | 80 mm * 8 |
| Schroef L/D-verhouding | 28 ： 1 | Accumulatorcapaciteit | 35 kg |
| Maximale vormgrootte | 1200*1500mm (B*H) | Maximale luchtdruk | 0,8 MPa |
| Luchtverbruik | 1.5 m3/min | ||
| Markeren | 8-Layer Blow Molding Machine,1000L Water Tank Blow Moulding Machine,Food-Grade Blow Molding Machine |
||
Productomschrijving
Complete Solution: 8-Layer Blow Molding Machine for 1000L Food-Grade Water Tanks
Key Features & Benefits
- Superior Product Quality: 8-layer structure ensures exceptional strength, chemical resistance, and insulation properties
- Operational Efficiency: User-friendly PLC control system enables precise operations and high production speed
- Cost-Effective Production: Optimized design saves energy and raw materials, maximizing your profit margin
- Built to Last: Crafted with high-quality components for long-term reliability and minimal maintenance
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 125CC | |
| Main Oil Pump Motor | 37kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic Control System
| Main Operation Panel | Touch Screen 9" |
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
