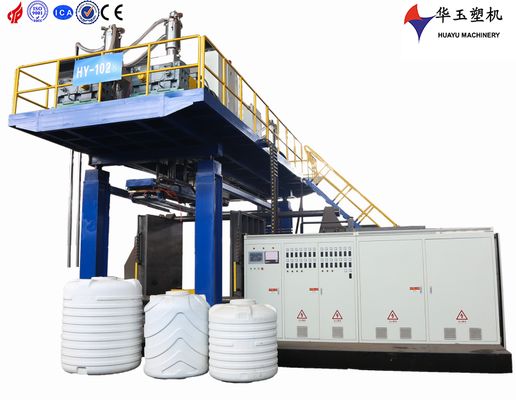

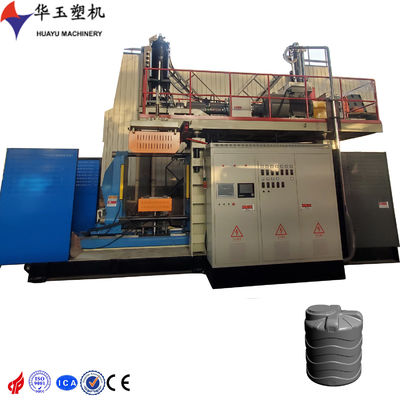

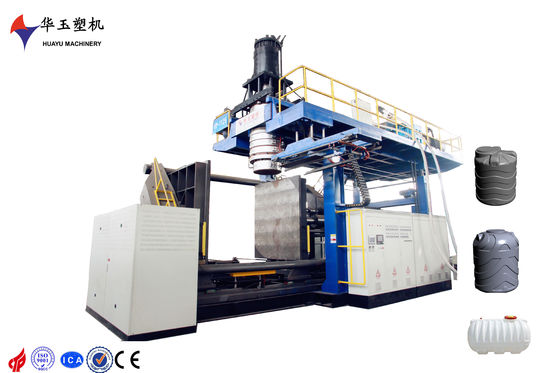

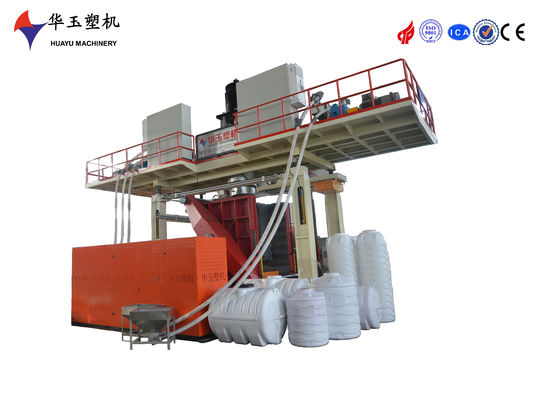

2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
| Plaats van herkomst | China |
|---|---|
| Merknaam | HUAYU |
| Certificering | ISO9001 CE |
| Modelnummer | HYBM-500-2000L, 12 lagen |
| Min. bestelaantal | 1set |
| Prijs | 360000 USD |
| Verpakking Details | worden in vele delen gedemonteerd voor containervervoer |
| Levertijd | 4 maanden |
| Betalingscondities | T/T,L/C |
| Levering vermogen | 1 set 120 dagen |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Spanning | hangend | Totaal vermogen | 648.5 kW |
|---|---|---|---|
| Gemiddelde kracht | 320 kW | Productiviteit | 10-24 stuks per uur |
| Schroefdiameter | 100 mm*7 | Schroef L/D-verhouding | 28 ： 1 |
| Accumulatorcapaciteit | 60 kg | Maximale vormgrootte | 1600*2000mm ((W*H) |
| Maximale luchtdruk | 0,8 MPa | Luchtverbruik | 2.3m3/min |
| Markeren | 12-Layer Co-Extrusion Water Tank Blow Molder,2000L Large-Capacity Blow Molding Machine,Precision Engineering IBC Tank Blow Molding Machine |
||
Productomschrijving
2000L 12-Layer Water Tank Blow Molder – Precision Crafted
Core Advantages
- 12-Layer Co-Extrusion Superiority: Multi-layer structure ensures exceptional barrier performance, pressure resistance and durability, ideal for long-term water storage without leakage or deformation.
- 2000L Large-Capacity Efficiency: Engineered to mold full-size 2000L water tanks in one single cycle, drastically cutting production time and boosting overall throughput.
- Precision Engineering for Consistency: High-precision control system guarantees uniform wall thickness across every layer, eliminating defects and ensuring stable product quality batch after batch.
- Industrial-Grade Reliability: Robust frame and high-quality components are built to withstand heavy-duty continuous operation, minimizing downtime and maintenance costs.
- Versatile Material Compatibility: Adaptable to a wide range of raw materials including HDPE, PP and recycled plastics, meeting diverse production needs and sustainability goals.
- User-Centric Intelligent Operation: Intuitive control interface simplifies operation and parameter adjustment, reducing the learning curve for operators and improving production efficiency.
Technical Specifications
Hydraulic System
| Main Oil Tank Capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 163CC | |
| Main Oil Pump Motor | 48kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic System
| Main Operation Panel | Touch Screen 12" | |
| Control System | PLC | |
| Thickness Control Points | 200 Points | |
| Temperature Control | PLC Module |
